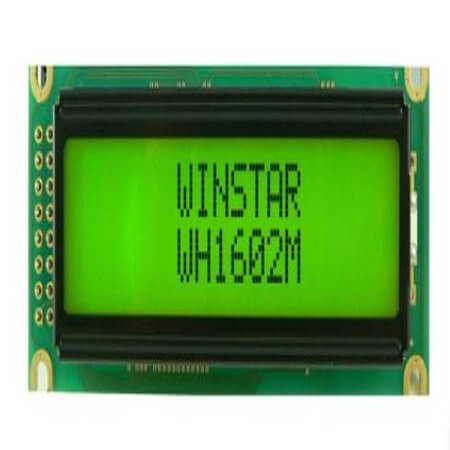

WH1602M-TFH-ET# LCD CHARACTER 16X2 FSTN POSITIVE 5V

WH1602M-TFH-ET# LCD CHARACTER 16X2 FSTN POSITIVE 5V Description

WH1602M-TFH-ET# LCD CHARACTER 16X2 FSTN POSITIVE 5V The product WH1602M-TFH-ET# (LCD CHARACTER 16X2 FSTN POSITIVE 5V) is a versatile character LCD module designed for a variety of display applications. Manufactured by WINSTAR, it supports a 6800 interface and offers a typical supply voltage of N/A. Featuring a N/A polarizer and a character font of English, European, it provides excellent readability. The module has an outline size of 85.00mm x 32.60mm x 13.20mm and operates within a temperature range of -20°C~+70°C. Compliant with RoHS standards and packaged in BOX format, this LCD is a reliable solution for modern electronic systems.

WH1602M-TFH-ET# LCD CHARACTER 16X2 FSTN POSITIVE 5V Technical Specifications

• Manufacturer: WINSTAR
• DisplayFormat: 16x2
• CharacterSize: 2.96x5.56mm
• ViewArea: 66.00x16.00mm
• BacklightType: LED, White
• LCDMode: FSTN Positive
• Polarizer/ViewDirection: Transflective W.T 6:00
• TypicalSupplyVoltage: 5V
• Interface/Controller: 6800
• CharacterFont: English, European
• OutlineLength: 85.00mm
• OutlineWidth: 32.60mm
• OutlineHeight: 13.20mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
