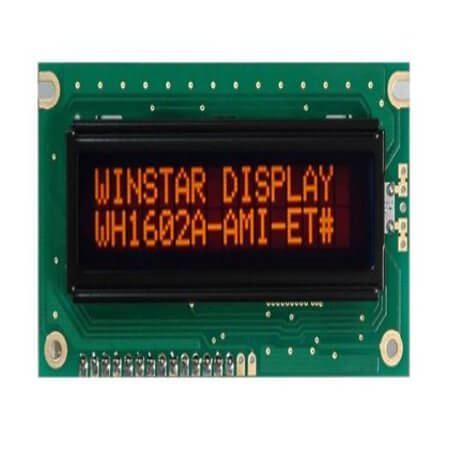

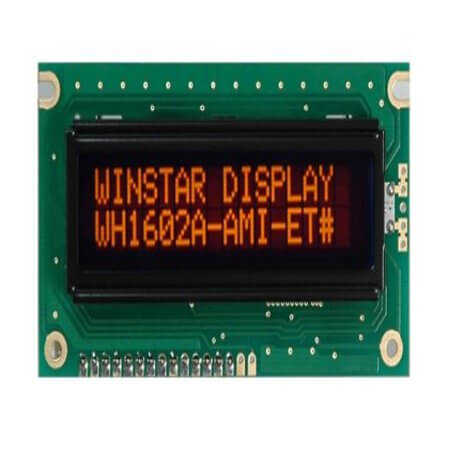

WH1602A-ATI-CT# LCD CHARACTER 16X2 FSTN NEGATIVE 5V

WH1602A-ATI-CT# LCD CHARACTER 16X2 FSTN NEGATIVE 5V Description

WH1602A-ATI-CT# LCD CHARACTER 16X2 FSTN NEGATIVE 5V The product WH1602A-ATI-CT# (LCD CHARACTER 16X2 FSTN NEGATIVE 5V) is a versatile character LCD module designed for a variety of display applications. Manufactured by WINSTAR, it supports a 6800,SPI,I2C - ST7066 interface and offers a typical supply voltage of N/A. Featuring a N/A polarizer and a character font of English, Cyrillic, it provides excellent readability. The module has an outline size of 84.00mm x 44.00mm x 12.20mm and operates within a temperature range of -20°C~+70°C. Compliant with RoHS standards and packaged in BOX format, this LCD is a reliable solution for modern electronic systems.

WH1602A-ATI-CT# LCD CHARACTER 16X2 FSTN NEGATIVE 5V Technical Specifications

• Manufacturer: WINSTAR
• DisplayFormat: 16x2
• CharacterSize: 2.95x5.55mm
• ViewArea: 66.00x16.00mm
• BacklightType: LED, Amber
• LCDMode: FSTN Negative
• Polarizer/ViewDirection:
• TypicalSupplyVoltage: 5V
• Interface/Controller: 6800,SPI,I2C - ST7066
• CharacterFont: English, Cyrillic
• OutlineLength: 84.00mm
• OutlineWidth: 44.00mm
• OutlineHeight: 12.20mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
