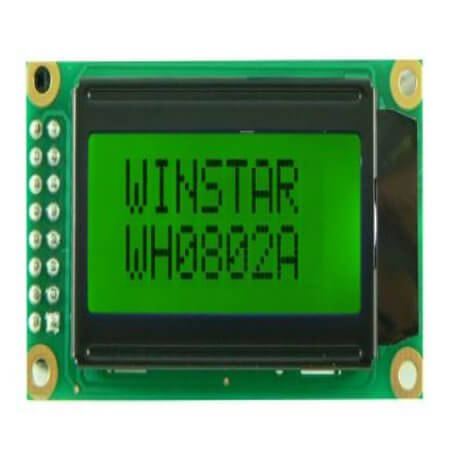

WH0802A-NYH-CT# LCD CHARACTER 8X2 STN POSITIVE YELLOW GREEN 5V

WH0802A-NYH-CT# LCD CHARACTER 8X2 STN POSITIVE YELLOW GREEN 5V Description

WH0802A-NYH-CT# LCD CHARACTER 8X2 STN POSITIVE YELLOW GREEN 5V The product WH0802A-NYH-CT# (LCD CHARACTER 8X2 STN POSITIVE YELLOW GREEN 5V) is a versatile character LCD module designed for a variety of display applications. Manufactured by WINSTAR, it supports a 6800 interface and offers a typical supply voltage of N/A. Featuring a N/A polarizer and a character font of English, Cyrillic, it provides excellent readability. The module has an outline size of 58.00mm x 32.00mm x 8.90mm and operates within a temperature range of -20°C~+70°C. Compliant with RoHS standards and packaged in BOX format, this LCD is a reliable solution for modern electronic systems.

WH0802A-NYH-CT# LCD CHARACTER 8X2 STN POSITIVE YELLOW GREEN 5V Technical Specifications

• Manufacturer: WINSTAR
• DisplayFormat: 8x2
• CharacterSize: 2.96x5.57mm
• ViewArea: 38.00x16.00mm
• BacklightType: Without Backlight
• LCDMode: STN Positive Yellow Green
• Polarizer/ViewDirection: Transflective W.T 6:00
• TypicalSupplyVoltage: 5V
• Interface/Controller: 6800
• CharacterFont: English, Cyrillic
• OutlineLength: 58.00mm
• OutlineWidth: 32.00mm
• OutlineHeight: 8.90mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
