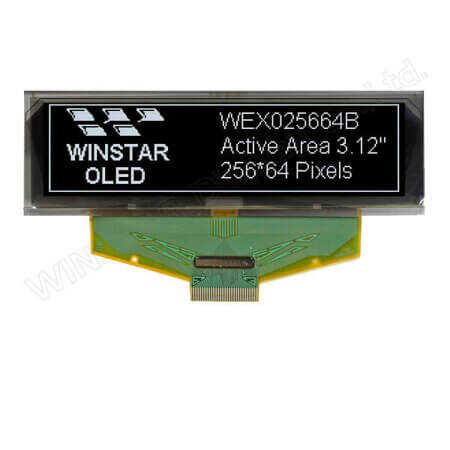

WEX025664BWPP3N00000 OLED GRAPHIC 256X64 WHITE 3.12"

WEX025664BWPP3N00000 OLED GRAPHIC 256X64 WHITE 3.12" Description

WEX025664BWPP3N00000 OLED GRAPHIC 256X64 WHITE 3.12" WEX025664BWPP3N00000 is a reliable and high-performance graphic OLED that featuring a resolution of Passive Matrix and typical supply voltage of N/A. Designed for Passive Matrix applications, it operates within a temperature range of -40°C~+80°C.Compact design with dimensions: length 88.00mm, width 27.80mm, height 2.05mm.Manufactured by WINSTAR and compliant with ROHS standards. Packaged as TRAY for convenience.

WEX025664BWPP3N00000 OLED GRAPHIC 256X64 WHITE 3.12" Technical Specifications

• Manufacturer: WINSTAR
• DisplayType: TAB
• DisplayFormat: 256x64
• Size: 3.12"
• TouchFunction: Without Touch
• EmittingColor: White
• DotSize: 0.278x0.278mm
• ViewArea: 78.78x21.18mm
• Interface: 6800, 8080, SPI
• Controller: SSD1322UR1(COF)
• Polarizer: Polarizer
• DisplayMode: Passive Matrix
• TypicalSupplyVoltage: 3V
• DrivingMethod/Duty: 1/64
• OutlineLength: 88.00mm
• OutlineWidth: 27.80mm
• OutlineHeight: 2.05mm
• OperatingTemperature: -40°C~+80°C
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
