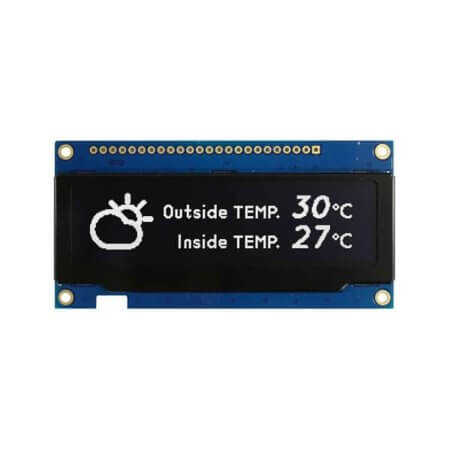

WEX025664BWAP3N00002 OLED GRAPHIC 256X64 WHITE 3.12"

WEX025664BWAP3N00002 OLED GRAPHIC 256X64 WHITE 3.12" Description

WEX025664BWAP3N00002 OLED GRAPHIC 256X64 WHITE 3.12" WEX025664BWAP3N00002 is a reliable and high-performance graphic OLED that featuring a resolution of Passive Matrix and typical supply voltage of N/A. Designed for Passive Matrix applications, it operates within a temperature range of -40°C~+80°C.Compact design with dimensions: length 89.20mm, width 44.00mm, height 3.30mm.Manufactured by WINSTAR and compliant with ROHS standards. Packaged as BOX for convenience.

WEX025664BWAP3N00002 OLED GRAPHIC 256X64 WHITE 3.12" Technical Specifications

• Manufacturer: WINSTAR
• DisplayType: TAB
• DisplayFormat: 256x64
• Size: 3.12"
• TouchFunction: Without Touch
• EmittingColor: White
• DotSize: 0.278x0.278mm
• ViewArea: 79.78x22.18mm
• Interface: 6800, 8080, SPI
• Controller: SSD1322(COF)
• Polarizer: Anti-Glare Polarizer
• DisplayMode: Passive Matrix
• TypicalSupplyVoltage: 3V
• DrivingMethod/Duty: 1/64
• OutlineLength: 89.20mm
• OutlineWidth: 44.00mm
• OutlineHeight: 3.30mm
• OperatingTemperature: -40°C~+80°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
