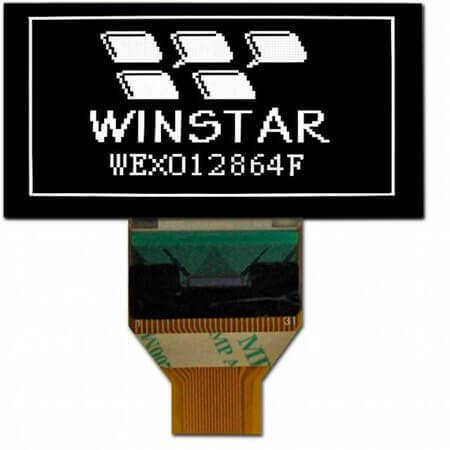

WEX012864EWPP3N00000 OLED GRAPHIC 128X64 WHITE 2.4"

WEX012864EWPP3N00000 OLED GRAPHIC 128X64 WHITE 2.4" Description

WEX012864EWPP3N00000 OLED GRAPHIC 128X64 WHITE 2.4" WEX012864EWPP3N00000 is a reliable and high-performance graphic OLED that featuring a resolution of Passive Matrix and typical supply voltage of N/A. Designed for Passive Matrix applications, it operates within a temperature range of -40°C~+80°C.Compact design with dimensions: length 75.00mm, width 52.70mm, height 8.50mm.Manufactured by WINSTAR and compliant with ROHS standards. Packaged as BOX for convenience.

WEX012864EWPP3N00000 OLED GRAPHIC 128X64 WHITE 2.4" Technical Specifications

• Manufacturer: WINSTAR
• DisplayType: TAB
• DisplayFormat: 128x64
• Size: 2.4"
• TouchFunction: Without Touch
• EmittingColor: White
• DotSize: 0.39x0.39mm
• ViewArea: 57.01x29.49mm
• Interface: 6800, 8080, SPI
• Controller: SSD1305T7R1
• Polarizer: Polarizer
• DisplayMode: Passive Matrix
• TypicalSupplyVoltage: 3V
• DrivingMethod/Duty: 1/64
• OutlineLength: 75.00mm
• OutlineWidth: 52.70mm
• OutlineHeight: 8.50mm
• OperatingTemperature: -40°C~+80°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
