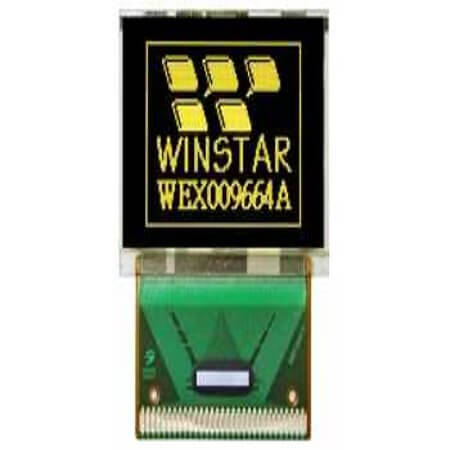

WEX009664ALPP3N00000 OLED GRAPHIC 96X64 YELLOW 1.1"

WEX009664ALPP3N00000 OLED GRAPHIC 96X64 YELLOW 1.1" Description

WEX009664ALPP3N00000 OLED GRAPHIC 96X64 YELLOW 1.1" WEX009664ALPP3N00000 is a reliable and high-performance graphic OLED that featuring a resolution of Passive Matrix and typical supply voltage of N/A. Designed for Passive Matrix applications, it operates within a temperature range of -40°C~+80°C.Compact design with dimensions: length 33.59mm, width 23.62mm, height 1.65mm.Manufactured by WINSTAR and compliant with ROHS standards. Packaged as BOX for convenience.

WEX009664ALPP3N00000 OLED GRAPHIC 96X64 YELLOW 1.1" Technical Specifications

• Manufacturer: WINSTAR
• DisplayType: TAB
• DisplayFormat: 96x64
• Size: 1.1"
• TouchFunction: Without Touch
• EmittingColor: Yellow
• DotSize: 0.215x0.215mm
• ViewArea: 25.49x17.65mm
• Interface: 6800, 8080, SPI, I2C
• Controller: SSD1305T7R1
• Polarizer: Polarizer
• DisplayMode: Passive Matrix
• TypicalSupplyVoltage: 5V
• DrivingMethod/Duty: 1/64
• OutlineLength: 33.59mm
• OutlineWidth: 23.62mm
• OutlineHeight: 1.65mm
• OperatingTemperature: -40°C~+80°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
