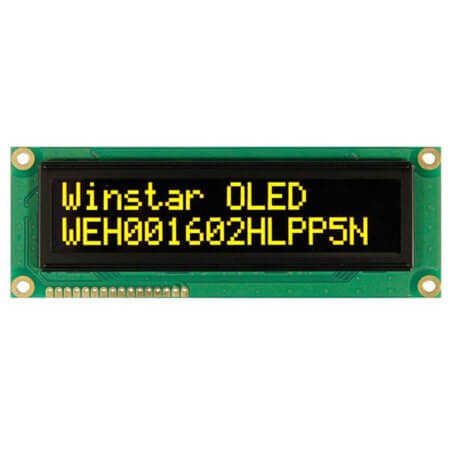

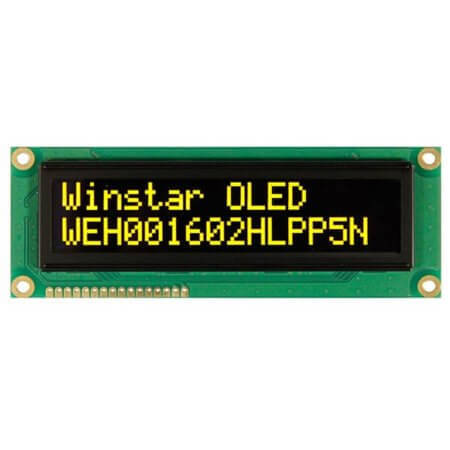

WEH001602HLPP5N00100 OLED CHARACTER 16X2 YELLOW 3.67"

WEH001602HLPP5N00100 OLED CHARACTER 16X2 YELLOW 3.67" Description

WEH001602HLPP5N00100 OLED CHARACTER 16X2 YELLOW 3.67" WEH001602HLPP5N00100 is an advanced OLED character display featuring a Passive Matrix mode. It operates at a typical supply voltage of N/A and has compact outline dimensions of 122.00mm x 44.00mm x 10.00mm. With an operational temperature range of -40°C~+80°C, it ensures reliable performance under various conditions. This product is ROHS compliant and is available in TRAY packaging for secure handling.

WEH001602HLPP5N00100 OLED CHARACTER 16X2 YELLOW 3.67" Technical Specifications

• Manufacturer: WINSTAR
• DisplayType: COB Character
• DisplayFormat: 16x2
• Size: 3.67"
• DotSize: 0.90x1.06mm
• ViewArea: 98.00x21.00mm
• EmittingColor: Yellow
• Interface: 6800
• Controller: WS0010-TX
• Polarizer: Polarizer
• DisplayMode: Passive Matrix
• Typical SupplyVoltage: 5V
• Driving Method /Duty: 1/16
• OutlineLength: 122.00mm
• OutlineWidth: 44.00mm
• OutlineHeight: 10.00mm
• OperatingTemperature: -40°C~+80°C
• Rohs: ROHS
• Packaging:

---

You can click for product datasheet.
