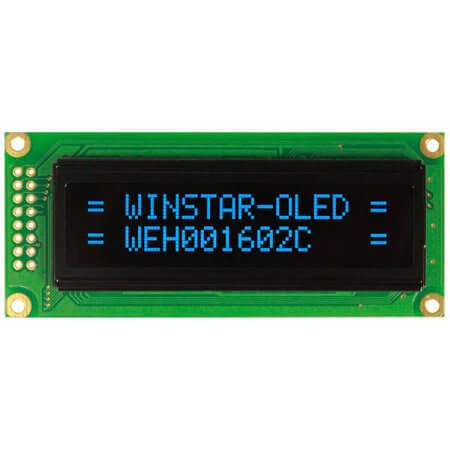

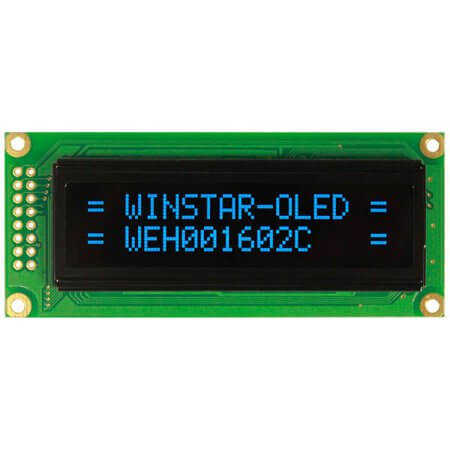

WEH001602CBPP5N00000 OLED CHARACTER 16X2 BLUE 2.26"

WEH001602CBPP5N00000 OLED CHARACTER 16X2 BLUE 2.26" Description

WEH001602CBPP5N00000 OLED CHARACTER 16X2 BLUE 2.26" WEH001602CBPP5N00000 is an advanced OLED character display featuring a Passive Matrix mode. It operates at a typical supply voltage of N/A and has compact outline dimensions of 85.00mm x 36.00mm x 10.00mm. With an operational temperature range of -40°C~+70°C, it ensures reliable performance under various conditions. This product is ROHS compliant and is available in TRAY packaging for secure handling.

WEH001602CBPP5N00000 OLED CHARACTER 16X2 BLUE 2.26" Technical Specifications

• Manufacturer: WINSTAR
• DisplayType: Character
• DisplayFormat: 16x2
• Size: 2.26"
• DotSize: 0.55x0.65mm
• ViewArea: 66.00x16.00mm
• EmittingColor: Blue
• Interface: 6800
• Controller: WS0010
• Polarizer: Polarizer
• DisplayMode: Passive Matrix
• Typical SupplyVoltage: 5V
• Driving Method /Duty: 1/16
• OutlineLength: 85.00mm
• OutlineWidth: 36.00mm
• OutlineHeight: 10.00mm
• OperatingTemperature: -40°C~+70°C
• Rohs: ROHS
• Packaging:

---

You can click for product datasheet.
