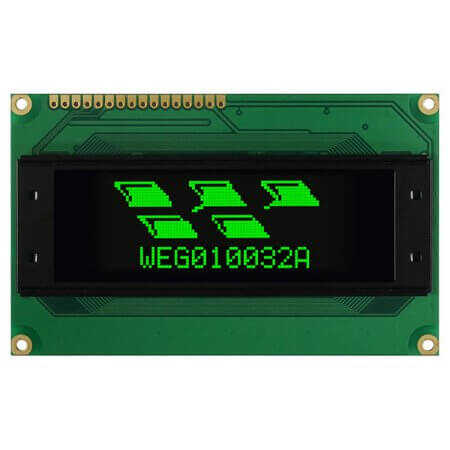

WEG010032AGPP5N00001 OLED GRAPHIC 100X32 GREEN

WEG010032AGPP5N00001 OLED GRAPHIC 100X32 GREEN Description

WEG010032AGPP5N00001 OLED GRAPHIC 100X32 GREEN WEG010032AGPP5N00001 is a reliable and high-performance graphic OLED that featuring a resolution of Passive Matrix and typical supply voltage of N/A. Designed for Passive Matrix applications, it operates within a temperature range of -40°C~+80°C.Compact design with dimensions: length 98.00mm, width 60.00mm, height 10.00mm.Manufactured by WINSTAR and compliant with ROHS standards. Packaged as TRAY for convenience.

WEG010032AGPP5N00001 OLED GRAPHIC 100X32 GREEN Technical Specifications

• Manufacturer: WINSTAR
• DisplayType: Graphic
• DisplayFormat: 100x32
• Size:
• TouchFunction: Without Touch
• EmittingColor: Green
• DotSize: 0.54x0.55mm
• ViewArea: 77.00x25.20mm
• Interface: 6800
• Controller: WS0010
• Polarizer: Polarizer
• DisplayMode: Passive Matrix
• TypicalSupplyVoltage: 5V
• DrivingMethod/Duty: 1/16
• OutlineLength: 98.00mm
• OutlineWidth: 60.00mm
• OutlineHeight: 10.00mm
• OperatingTemperature: -40°C~+80°C
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
