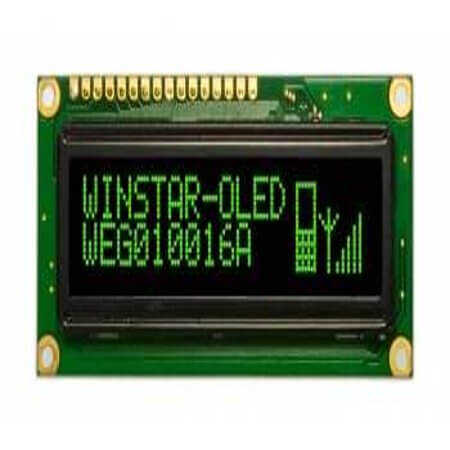

WEG010016AGPP5N00000 OLED GRAPHIC 100X16 GREEN 2.4"

WEG010016AGPP5N00000 OLED GRAPHIC 100X16 GREEN 2.4" Description

WEG010016AGPP5N00000 OLED GRAPHIC 100X16 GREEN 2.4" WEG010016AGPP5N00000 is a reliable and high-performance graphic OLED that featuring a resolution of Passive Matrix and typical supply voltage of N/A. Designed for Passive Matrix applications, it operates within a temperature range of -40°C~+80°C.Compact design with dimensions: length 80.00mm, width 36.00mm, height 10.00mm.Manufactured by WINSTAR and compliant with ROHS standards. Packaged as BOX for convenience.

WEG010016AGPP5N00000 OLED GRAPHIC 100X16 GREEN 2.4" Technical Specifications

• Manufacturer: WINSTAR
• DisplayType: Graphic
• DisplayFormat: 100x16
• Size: 2.4"
• TouchFunction: Without Touch
• EmittingColor: Green
• DotSize: 0.55x0.65mm
• ViewArea: 66.00x16.00mm
• Interface: 6800
• Controller: WS0010
• Polarizer: Polarizer
• DisplayMode: Passive Matrix
• TypicalSupplyVoltage: 5V
• DrivingMethod/Duty: 1/16
• OutlineLength: 80.00mm
• OutlineWidth: 36.00mm
• OutlineHeight: 10.00mm
• OperatingTemperature: -40°C~+80°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
