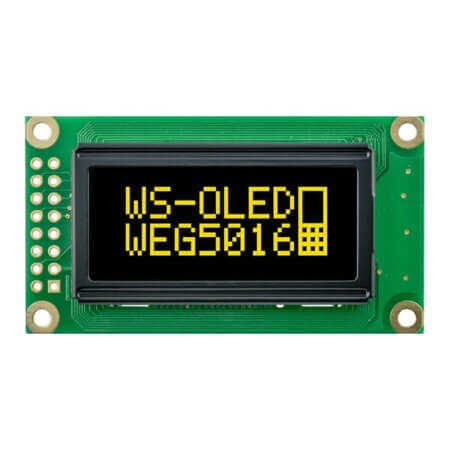

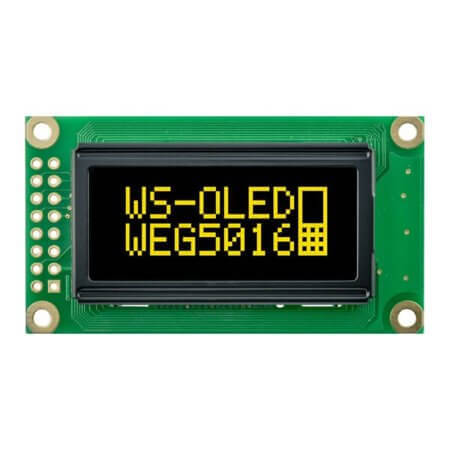

WEG005016ALPP5N00100 OLED GRAPHIC 50X16 YELLOW 1.26"

WEG005016ALPP5N00100 OLED GRAPHIC 50X16 YELLOW 1.26" Description

WEG005016ALPP5N00100 OLED GRAPHIC 50X16 YELLOW 1.26" WEG005016ALPP5N00100 is a reliable and high-performance graphic OLED that featuring a resolution of Passive Matrix and typical supply voltage of N/A. Designed for Passive Matrix applications, it operates within a temperature range of -40°C~+80°C.Compact design with dimensions: length 58.00mm, width 32.00mm, height 10.00mm.Manufactured by WINSTAR and compliant with ROHS standards. Packaged as TRAY for convenience.

WEG005016ALPP5N00100 OLED GRAPHIC 50X16 YELLOW 1.26" Technical Specifications

• Manufacturer: WINSTAR
• DisplayType: Graphic
• DisplayFormat: 50x16
• Size: 1.26"
• TouchFunction: Without Touch
• EmittingColor: Yellow
• DotSize: 0.56x0.66mm
• ViewArea: 38.00x16.00mm
• Interface: 6800
• Controller: WS0010-TX
• Polarizer: Polarizer
• DisplayMode: Passive Matrix
• TypicalSupplyVoltage: 5V
• DrivingMethod/Duty: 1/16
• OutlineLength: 58.00mm
• OutlineWidth: 32.00mm
• OutlineHeight: 10.00mm
• OperatingTemperature: -40°C~+80°C
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
