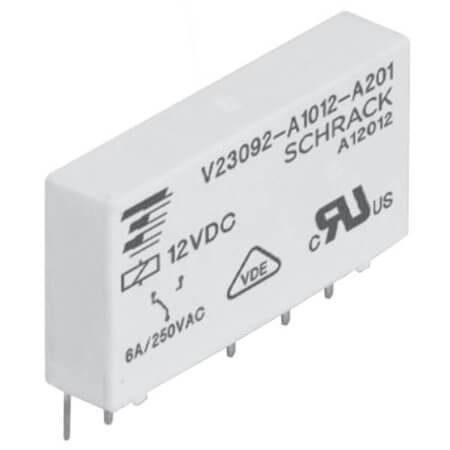

V23092A1012A202 RELAY POWER 6A 12VDC SPST-NO THT SCHRACK

V23092A1012A202 RELAY POWER 6A 12VDC SPST-NO THT SCHRACK Description

V23092A1012A202 RELAY POWER 6A 12VDC SPST-NO THT SCHRACK V23092A1012A202 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VAC - Max and coil resistance of 848 Ohms. Features a coil power of 170mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 28.00mm, width 5.00mm, and height 15.00mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TUBE for convenience.

V23092A1012A202 RELAY POWER 6A 12VDC SPST-NO THT SCHRACK Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Power
• Series: V23092
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 6A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 14.20mA
• ContactVoltage: 400VAC - Max
• CoilResistance: 848 Ohms
• CoilPower: 170mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 28.00mm
• Width: 5.00mm
• Height: 15.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
