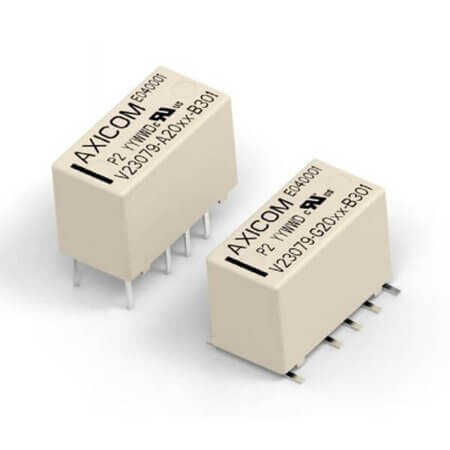

V23079G1008B301 RELAY TELECOM 2A 3VDC DPDT SMT AXICOM

V23079G1008B301 RELAY TELECOM 2A 3VDC DPDT SMT AXICOM Description

V23079G1008B301 RELAY TELECOM 2A 3VDC DPDT SMT AXICOM V23079G1008B301 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/220VDC - Max and coil resistance of 64 Ohms. Features a coil power of 140mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 14.50mm, width 7.20mm, and height 9.80mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TAPE&REEL for convenience.

V23079G1008B301 RELAY TELECOM 2A 3VDC DPDT SMT AXICOM Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Telecom
• Series: V23079
• MountingType: SMT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 3VDC
• CoilCurrent: 46.70mA
• ContactVoltage: 250VAC/220VDC - Max
• CoilResistance: 64 Ohms
• CoilPower: 140mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 14.50mm
• Width: 7.20mm
• Height: 9.80mm
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
