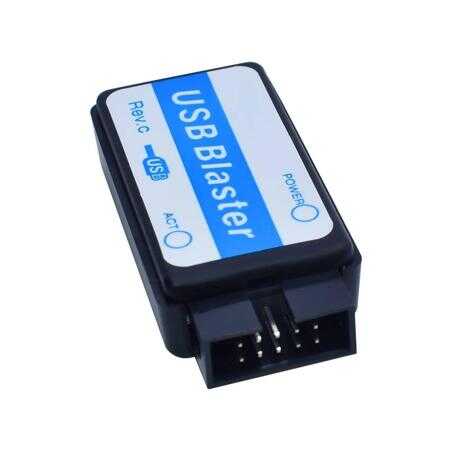

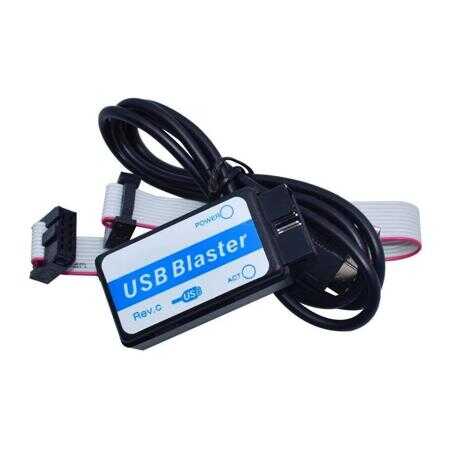

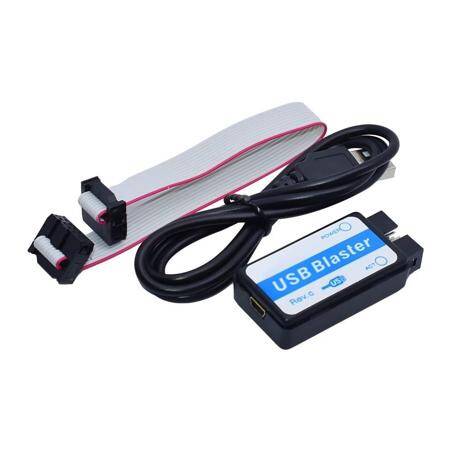

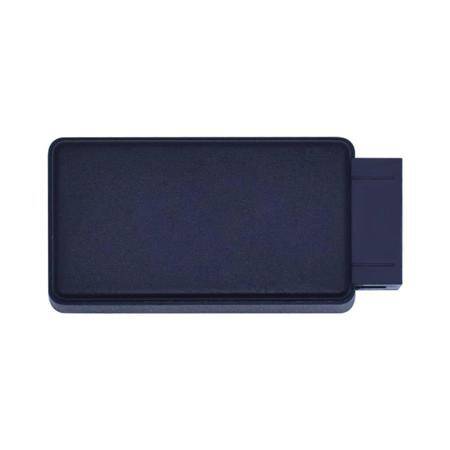

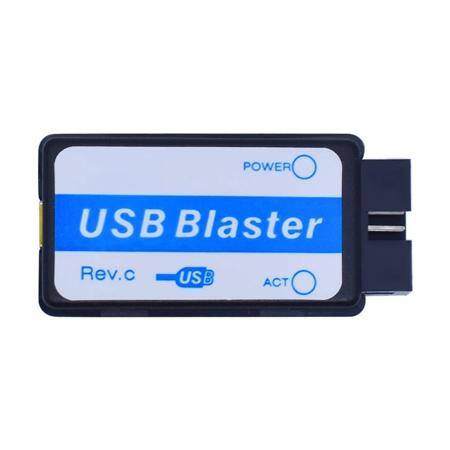

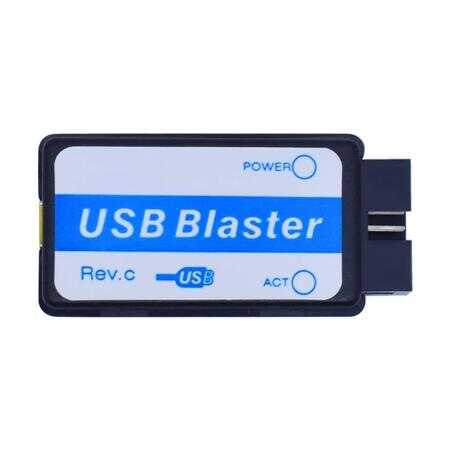

USB Blaster (ALTERA CPLD / FPGA Download Cable)

USB Blaster Download Cable Description

The USB Blaster is a high-speed programming and debugging cable designed for use with Altera CPLD and FPGA devices. It allows users to download configurations and programs to Altera FPGAs and CPLDs directly from a computer using a USB connection. The cable supports a wide range of Altera development boards and provides fast, reliable programming and debugging. This tool is essential for FPGA/CPLD developers and engineers working on complex logic designs, enabling efficient and convenient device configuration.

USB Blaster Features

• Fast Programming: Provides fast download speeds for quick configuration and testing of FPGA and CPLD devices.
• Wide Compatibility: Supports a variety of Altera FPGA and CPLD families, including MAX II, MAX V, Cyclone, and Stratix series.
• USB Interface: Connects via USB for easy integration with modern PCs and laptops without the need for additional hardware.
• Reliable and Stable: Designed for reliable performance, minimizing the risk of errors during programming and debugging.

USB Blaster Specifications

• Compatibility: Works with Altera CPLDs, FPGAs, and development boards
• Interface: USB to JTAG interface for direct programming of devices
• Operating Systems: Compatible with major operating systems, including Windows and Linux
• Programming Tools: Works with Altera Quartus II and other FPGA design tools for configuration and programming

USB Blaster Applications

• FPGA and CPLD Programming: Ideal for programming Altera FPGAs and CPLDs with custom configurations and firmware.
• Design Debugging: Use for debugging and testing FPGA-based designs with real-time updates and monitoring.
• Embedded System Design: Essential for developers working with embedded FPGA systems, including signal processing and digital logic applications.
