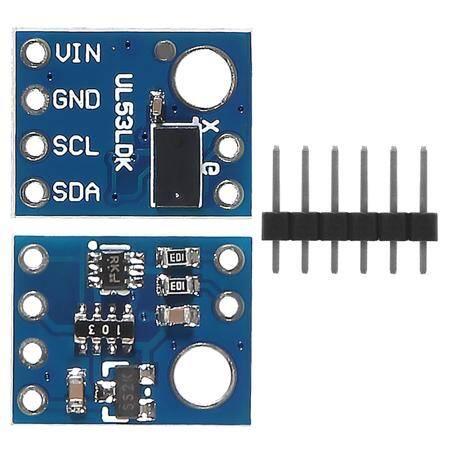

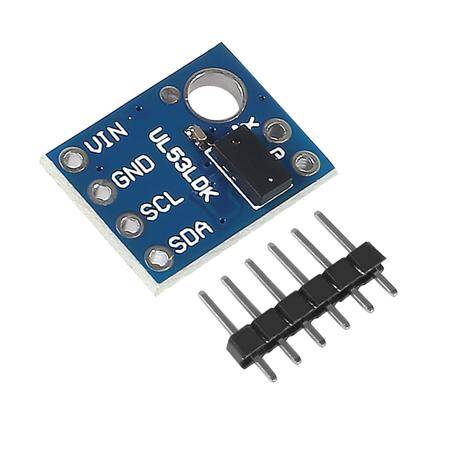

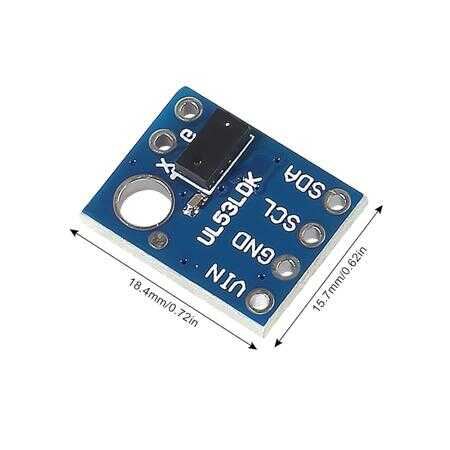

Unsoldered Blue GY-530 VL53L0X Laser Ranging Sensor Module

Unsoldered Blue GY-530 VL53L0X Laser Ranging Sensor Module Description

The Unsoldered Blue GY-530 VL53L0X Laser Ranging Sensor Module is a high-performance laser sensor based on the VL53L0X Time-of-Flight (ToF) technology, capable of accurately measuring distances up to 2 meters. This module uses a laser to measure the time it takes for light to travel to an object and back, providing highly accurate distance data. The GY-530 module operates using the I2C communication protocol, making it easy to interface with various microcontrollers like Arduino, Raspberry Pi, and ESP32. The unsoldered version offers flexibility, allowing you to solder components based on your specific project needs. It is ideal for robotics, automation, and other distance sensing applications.

Unsoldered Blue GY-530 VL53L0X Laser Ranging Sensor Module Features

• VL53L0X Sensor: Built with the VL53L0X Time-of-Flight sensor, providing precise laser-based distance measurement with high accuracy.
• Distance Measurement: Measures distances from 30 mm to 2 meters, ideal for robotics, drones, and automation applications.
• I2C Interface: Easy integration with microcontrollers via the I2C interface, ensuring fast and reliable data transmission.
• Unsoldered Version: Provides customization flexibility for various applications, allowing users to assemble the module as per their specific requirements.
• Compact Design: Small and lightweight, making it perfect for integration into space-constrained projects like robotic systems or drones.

Unsoldered Blue GY-530 VL53L0X Laser Ranging Sensor Module Specifications

• Sensor Type: VL53L0X Laser Ranging (ToF)
• Distance Range: 30 mm to 2 meters
• Operating Voltage: 3.3V to 5V
• Communication: I2C interface
• Assembly: Unsoldered for flexibility and customization

Unsoldered Blue GY-530 VL53L0X Laser Ranging Sensor Module Applications

• Robotics: Perfect for robotics applications requiring precise distance measurement and object avoidance.
• Automation Systems: Ideal for creating automated systems that need accurate proximity sensing for decision-making and movement.
• Drones: Can be used in drone systems for collision avoidance and accurate height measurement.
• Distance Sensing: Suitable for any application that requires accurate and reliable distance measurement, such as measurement tools and environmental monitoring systems.
