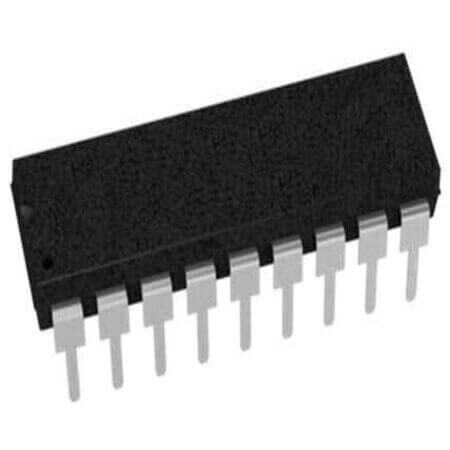

ULQ2803A IC-2803 ARRAY EIGHT DARLINGTON 18 DIP STM

ULQ2803A IC-2803 ARRAY EIGHT DARLINGTON 18 DIP STM Description

ULQ2803A IC-2803 ARRAY EIGHT DARLINGTON 18 DIP STM ULQ2803A is a high-performance transistor array, featuring 8 NPN Darlington Array. With a maximum collector-emitter voltage of 50V and a current rating of 500mA, it ensures reliable operation in demanding applications. The device supports -/-/8 channels and offers a power dissipation of 1 Watt(a pair) / 2.25 Watt(total package). Designed for THT mounting, it is available in a DIP18 package. The operating temperature range is -40°C~+105°C, and it complies with ROHS standards, making it suitable for various electronic designs. Packaged in TUBE for ease of use.

ULQ2803A IC-2803 ARRAY EIGHT DARLINGTON 18 DIP STM Technical Specifications

• Manufacturer: STM
• Features: 8 NPN Darlington Array
• MountingType: THT
• Package/Case: DIP18
• CollectorEmitterVoltage(Max): 50V
• CollectorCurrent(Max): 500mA
• PowerDissipation: 1 Watt(a pair) / 2.25 Watt(total package)
• NumberofDrivers/Receivers/Channels: -/-/8
• OperatingTemperature: -40°C~+105°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
