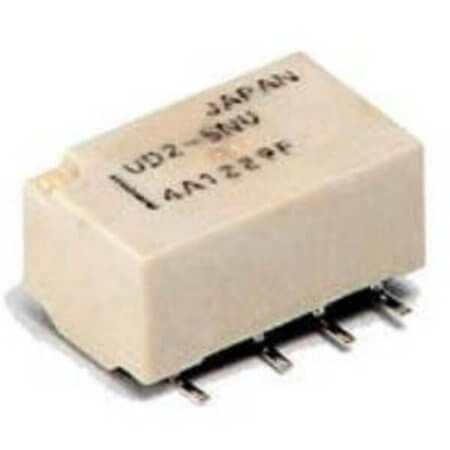

UD2-4.5NU RELAY 2A 4.5VDC 8PNC SMD SLIM TYPE

UD2-4.5NU RELAY 2A 4.5VDC 8PNC SMD SLIM TYPE Description

UD2-4.5NU RELAY 2A 4.5VDC 8PNC SMD SLIM TYPE UD2-4.5NU is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/220VDC - Max and coil resistance of 145 Ohms. Features a coil power of 140mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 10.60mm, width 6.50mm, and height 5.45mm.Manufactured by KEMET and compliant with ROHS standards. Packaged as TUBE for convenience.

UD2-4.5NU RELAY 2A 4.5VDC 8PNC SMD SLIM TYPE Technical Specifications

• Manufacturer: KEMET
• RelayType: Relay Telecom
• Series: UD2
• MountingType: SMT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 4.50VDC
• CoilCurrent: 31mA
• ContactVoltage: 250VAC/220VDC - Max
• CoilResistance: 145 Ohms
• CoilPower: 140mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 10.60mm
• Width: 6.50mm
• Height: 5.45mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
