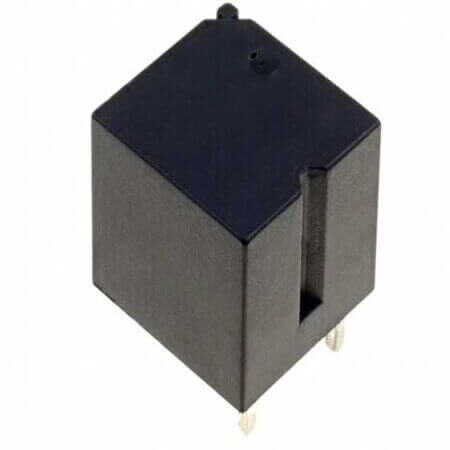

TRS L-S-Z/12VDC RELAY 30A 12VDC 1FormC TIANBO

TRS L-S-Z/12VDC RELAY 30A 12VDC 1FormC TIANBO Description

TRS L-S-Z/12VDC RELAY 30A 12VDC 1FormC TIANBO TRS L-S-Z/12VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 14VDC and coil resistance of 254 Ohms. Features a coil power of 570mW and operates within a temperature range of -40°C~+105°C.Compact design with dimensions: length 13.20mm, width 12.30mm, and height 9.80mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TUBE for convenience.

TRS L-S-Z/12VDC RELAY 30A 12VDC 1FormC TIANBO Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Automotive
• Series: TRS
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 30A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 47.50mA
• ContactVoltage: 14VDC
• CoilResistance: 254 Ohms
• CoilPower: 570mW
• OperatingTemperature: -40°C~+105°C
• NumberofPins: 5 Pin
• Length: 13.20mm
• Width: 12.30mm
• Height: 9.80mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
