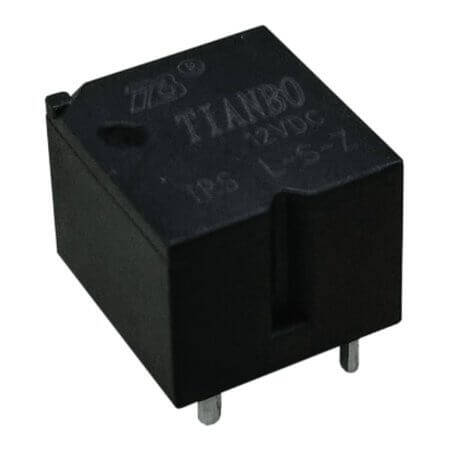

TRS D-S-Z/12VDC RELAY 40A 12VDC FORMC 5PIN

TRS D-S-Z/12VDC RELAY 40A 12VDC FORMC 5PIN Description

TRS D-S-Z/12VDC RELAY 40A 12VDC FORMC 5PIN TRS D-S-Z/12VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of nan and coil resistance of 180 Ohms. Features a coil power of 800mW and operates within a temperature range of -40°C~+105°C.Compact design with dimensions: length 13.20mm, width 12.30mm, and height 9.80mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TRAY for convenience.

TRS D-S-Z/12VDC RELAY 40A 12VDC FORMC 5PIN Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Automotive
• Series: TRS
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 30A
• ContactCurrent(Max): 40A
• CoilVoltage: 12VDC
• CoilCurrent: 66.70mA
• ContactVoltage:
• CoilResistance: 180 Ohms
• CoilPower: 800mW
• OperatingTemperature: -40°C~+105°C
• NumberofPins: 5 Pin
• Length: 13.20mm
• Width: 12.30mm
• Height: 9.80mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
