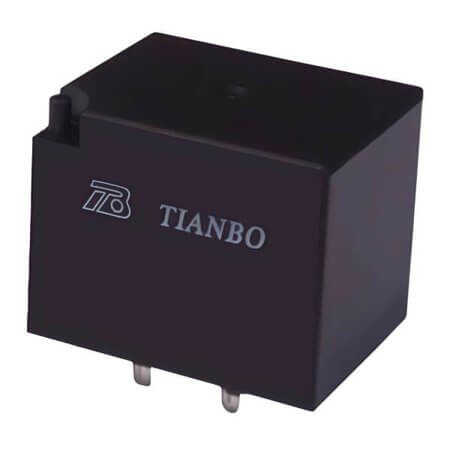

TRKP L-S-Z1/12VDC RELAY 40A 12VDC FORMC

TRKP L-S-Z1/12VDC RELAY 40A 12VDC FORMC Description

TRKP L-S-Z1/12VDC RELAY 40A 12VDC FORMC TRKP L-S-Z1/12VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 60VDC - Max and coil resistance of 90 Ohms. Features a coil power of 1.60W and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 23.50mm, width 19.20mm, and height 18.50mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TRAY for convenience.

TRKP L-S-Z1/12VDC RELAY 40A 12VDC FORMC Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Power
• Series: TRKP
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 40A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 133mA
• ContactVoltage: 60VDC - Max
• CoilResistance: 90 Ohms
• CoilPower: 1.60W
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 7 Pin
• Length: 23.50mm
• Width: 19.20mm
• Height: 18.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
