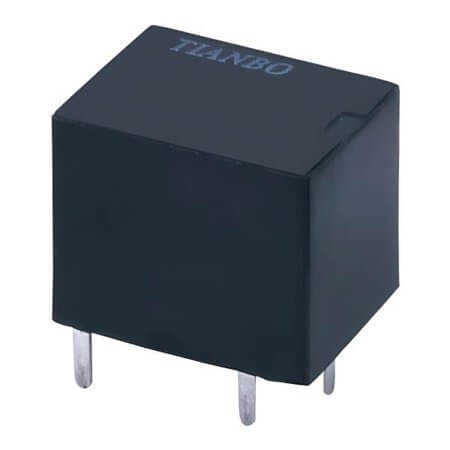

TRKM-L-S-Z-24VDC RELAY POWER 7A 24V ULTRA MINI

TRKM-L-S-Z-24VDC RELAY POWER 7A 24V ULTRA MINI Description

TRKM-L-S-Z-24VDC RELAY POWER 7A 24V ULTRA MINI TRKM-L-S-Z-24VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 120VAC/14VDC and coil resistance of 960 Ohms. Features a coil power of 600mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 15.70mm, width 12.30mm, and height 14.00mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TUBE for convenience.

TRKM-L-S-Z-24VDC RELAY POWER 7A 24V ULTRA MINI Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Power
• Series: TRKM
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 20A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 25mA
• ContactVoltage: 120VAC/14VDC
• CoilResistance: 960 Ohms
• CoilPower: 600mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 15.70mm
• Width: 12.30mm
• Height: 14.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
