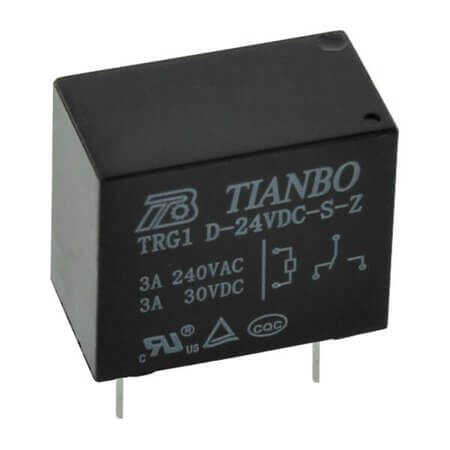

TRG1-D-24VDC-S-Z RELAY 3A 24VDC 1 FORM C

TRG1-D-24VDC-S-Z RELAY 3A 24VDC 1 FORM C Description

TRG1-D-24VDC-S-Z RELAY 3A 24VDC 1 FORM C TRG1-D-24VDC-S-Z is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 1.28K Ohms. Features a coil power of 450mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 18.20mm, width 10.20mm, and height 15.50mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TRAY for convenience.

TRG1-D-24VDC-S-Z RELAY 3A 24VDC 1 FORM C Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Power
• Series: TRG1
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 3A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 18.75mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 1.28K Ohms
• CoilPower: 450mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 18.20mm
• Width: 10.20mm
• Height: 15.50mm
• Rohs: ROHS
• Packaging: TRAY

---
