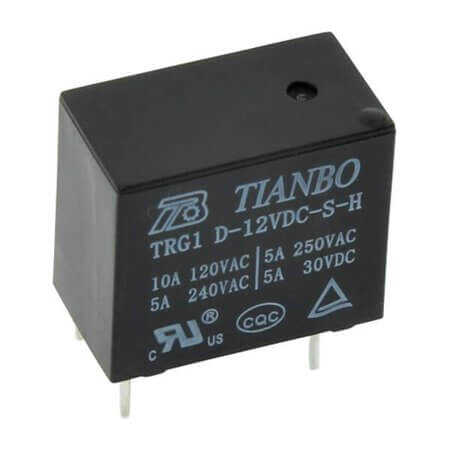

TRG1-D-12VDC-S-H RELAY POWER 5A 12VDC 1FormA PCB TYPE

TRG1-D-12VDC-S-H RELAY POWER 5A 12VDC 1FormA PCB TYPE Description

TRG1-D-12VDC-S-H RELAY POWER 5A 12VDC 1FormA PCB TYPE TRG1-D-12VDC-S-H is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 1.28K Ohms. Features a coil power of 450mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 18.20mm, width 10.20mm, and height 15.50mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TRAY for convenience.

TRG1-D-12VDC-S-H RELAY POWER 5A 12VDC 1FormA PCB TYPE Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Power
• Series: TRG1
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max): 10A
• CoilVoltage: 12VDC
• CoilCurrent: 18.75mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 1.28K Ohms
• CoilPower: 450mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 18.20mm
• Width: 10.20mm
• Height: 15.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
