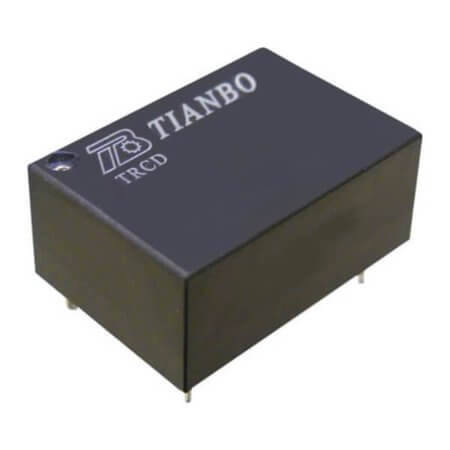

TRCD-L-48VDC-S-H RELAY POWER 10A 48VDC

TRCD-L-48VDC-S-H RELAY POWER 10A 48VDC Description

TRCD-L-48VDC-S-H RELAY POWER 10A 48VDC TRCD-L-48VDC-S-H is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/24VDC and coil resistance of nan. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 23.00mm, width 16.10mm, and height 10.20mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as BOX for convenience.

TRCD-L-48VDC-S-H RELAY POWER 10A 48VDC Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Power
• Series: TRCD
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max): 16A
• CoilVoltage: 48VDC
• CoilCurrent:
• ContactVoltage: 250VAC/24VDC
• CoilResistance:
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 23.00mm
• Width: 16.10mm
• Height: 10.20mm
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
