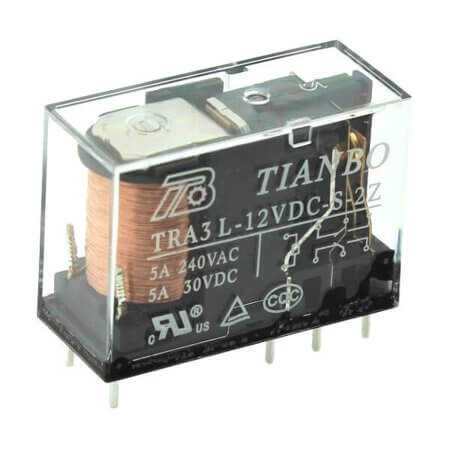

TRA3-L-12VDC-S-2Z(2) RELAY POWER 5A 12VDC 2P Transparent Cover

TRA3-L-12VDC-S-2Z(2) RELAY POWER 5A 12VDC 2P Transparent Cover Description

TRA3-L-12VDC-S-2Z(2) RELAY POWER 5A 12VDC 2P Transparent Cover TRA3-L-12VDC-S-2Z(2) is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 240VAC/30VDC and coil resistance of 270 Ohms. Features a coil power of 540mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 29.00mm, width 12.70mm, and height 20.40mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TUBE for convenience.

TRA3-L-12VDC-S-2Z(2) RELAY POWER 5A 12VDC 2P Transparent Cover Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Power
• Series: TRA3
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 45mA
• ContactVoltage: 240VAC/30VDC
• CoilResistance: 270 Ohms
• CoilPower: 540mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 29.00mm
• Width: 12.70mm
• Height: 20.40mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
