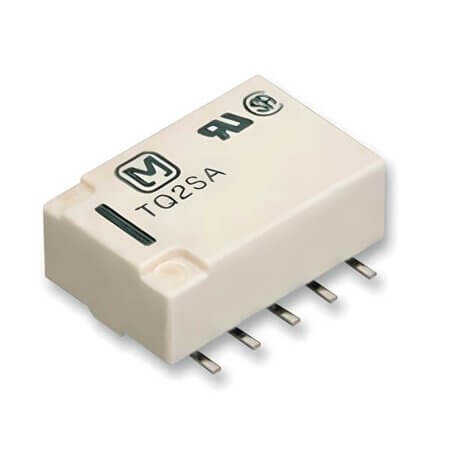

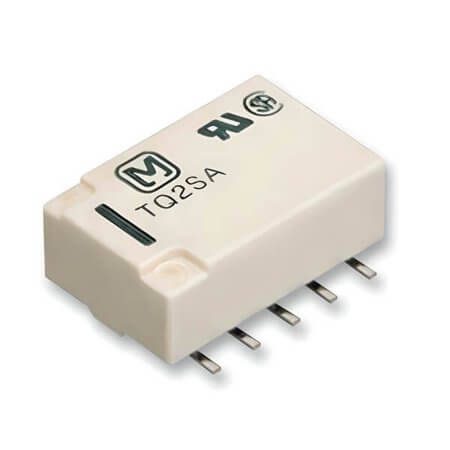

TQ2SA-48V RELAY 2A 24VDC 2FormC TELECOM TYPE

TQ2SA-48V RELAY 2A 24VDC 2FormC TELECOM TYPE Description

TQ2SA-48V RELAY 2A 24VDC 2FormC TELECOM TYPE TQ2SA-48V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/220VDC - Max and coil resistance of 7.68K Ohms. Features a coil power of 300mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 14.00mm, width 9.00mm, and height 4.90mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

TQ2SA-48V RELAY 2A 24VDC 2FormC TELECOM TYPE Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Telecom
• Series: TQ
• MountingType: SMT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 48VDC
• CoilCurrent: 6.25mA
• ContactVoltage: 125VAC/220VDC - Max
• CoilResistance: 7.68K Ohms
• CoilPower: 300mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 10 Pin
• Length: 14.00mm
• Width: 9.00mm
• Height: 4.90mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
