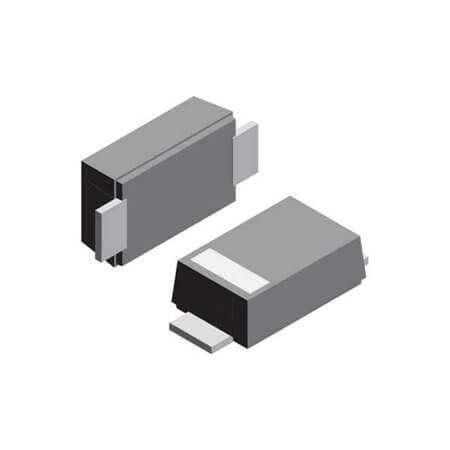

TPSMA6L5.0A DIODE TVS 600W 5V DO221AC (SMA) SMT T&R

TPSMA6L5.0A DIODE TVS 600W 5V DO221AC (SMA) SMT T&R Description

The TPSMA6L5.0A DIODE TVS 600W 5V DO221AC (SMA) SMT T&R The TPSMA6L5.0A by LITTELFUSE is a state-of-the-art TVS diode designed to protect electronic circuits from voltage transients. With a reverse current of 800uA, it ensures minimal leakage while maintaining optimal performance. Featuring a peak pulse current of 65.3A and a power peak pulse of 600W, this diode is ideal for Automotive(AEC-Q101) applications. Operating efficiently within a temperature range of -65°C~+150°C, the TPSMA6L5.0A is built to endure demanding environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this diode offers exceptional reliability and protection for sensitive electronic systems.

TPSMA6L5.0A DIODE TVS 600W 5V DO221AC (SMA) SMT T&R Technical Specifications

• Manufacturer: LITTELFUSE
• TVS   DiodeType: Standard
• DiodeConfiguration: Single
• MountingType: SMT
• Package   /Case: DO221AC (SMA)
• Direction: Uni-Direction
• Voltage   -   Reverse   Standoff(Typ): 5V
• ReverseCurrent: 800uA
• Peak   Pulse   Current   (Max)(Ippm): 65.3A
• Power   (PeakPulse): 600W
• Applications: Automotive(AEC-Q101)
• OperatingTemperature: -65°C~+150°C
• Rohs: ROHS
• Packaging: TAPE&REEL
