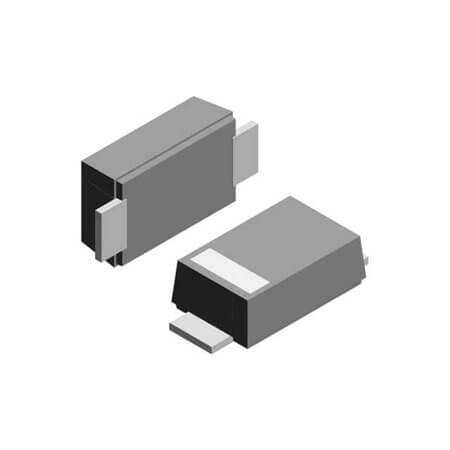

TPSMA6L24A DIODE TVS 600W 38.9V SMA

TPSMA6L24A DIODE TVS 600W 38.9V SMA Description

The TPSMA6L24A DIODE TVS 600W 38.9V SMA The TPSMA6L24A by LITTELFUSE is a state-of-the-art TVS diode designed to protect electronic circuits from voltage transients. With a reverse current of 1uA, it ensures minimal leakage while maintaining optimal performance. Featuring a peak pulse current of 15.5A and a power peak pulse of 600W, this diode is ideal for Automotive(AEC-Q101) applications. Operating efficiently within a temperature range of -65°C~+150°C, the TPSMA6L24A is built to endure demanding environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this diode offers exceptional reliability and protection for sensitive electronic systems.

TPSMA6L24A DIODE TVS 600W 38.9V SMA Technical Specifications

• Manufacturer: LITTELFUSE
• TVS   DiodeType: Standard
• DiodeConfiguration: Single
• MountingType: SMT
• Package   /Case: DO221AC (SMA)
• Direction: Uni-Direction
• Voltage   -   Reverse   Standoff(Typ): 24V
• ReverseCurrent: 1uA
• Peak   Pulse   Current   (Max)(Ippm): 15.5A
• Power   (PeakPulse): 600W
• Applications: Automotive(AEC-Q101)
• OperatingTemperature: -65°C~+150°C
• Rohs: ROHS
• Packaging: TAPE&REEL
