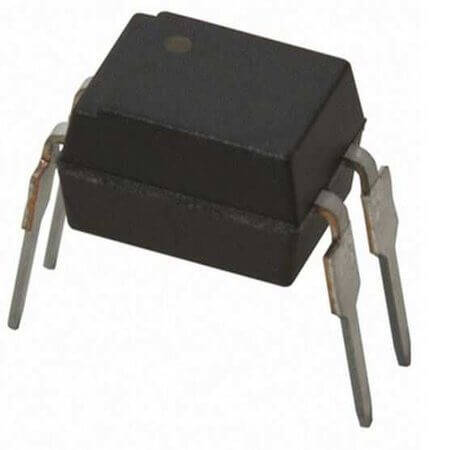

TLP785(D4-BLL,F(C IC-785 PHOTOCOUPLER TRANS. OUT.5000VRMS 1 CHANNEL

TLP785(D4-BLL,F(C IC-785 PHOTOCOUPLER TRANS. OUT.5000VRMS 1 CHANNEL Description

The TLP785(D4-BLL,F(C IC-785 PHOTOCOUPLER TRANS. OUT.5000VRMS 1 CHANNEL The TLP785(D4-BLL,F(C by TOSHIBA is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 80V and an output current of 50mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 5000Vrms and a forward voltage of 1.15V, making it suitable for demanding applications. Operating in a temperature range of -55°C~+110°C, the TLP785(D4-BLL,F(C is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TUBE format, this optocoupler is the ideal choice for advanced electronic designs.

TLP785(D4-BLL,F(C IC-785 PHOTOCOUPLER TRANS. OUT.5000VRMS 1 CHANNEL Technical Specifications

• Features: Photocoupler IRED & Photo-Transistor
• Manufacturer: TOSHIBA
• MountingType: THT
• Package   /Case: DIP4
• Number   ofChannel: 1
• Current   TransferRatio: %200 - %400
• OutputVoltage: 80V
• OutputCurrent: 50mA
• IsolationVoltage: 5000Vrms
• ForwardVoltage: 1.15V
• OperatingTemperature: -55°C~+110°C
• Rohs: ROHS
• Packaging: TUBE
