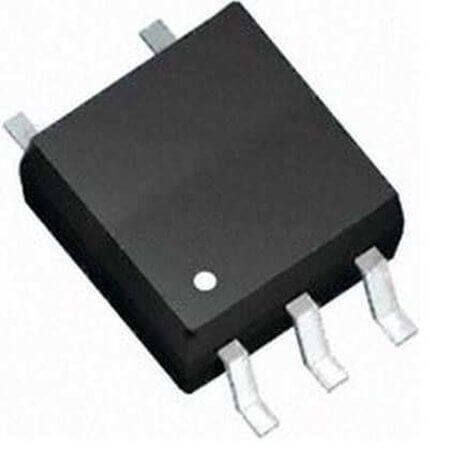

TLP2309(TPL,E(T IC-2309 OPTOISO 3.75KV TRANS 6-SO 5 LEAD

TLP2309(TPL,E(T IC-2309 OPTOISO 3.75KV TRANS 6-SO 5 LEAD Description

The TLP2309(TPL,E(T IC-2309 OPTOISO 3.75KV TRANS 6-SO 5 LEAD The TLP2309(TPL,E(T by TOSHIBA is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of nan and an output current of 8mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 3750Vrms and a forward voltage of 1.7V, making it suitable for demanding applications. Operating in a temperature range of -40°C~+110°C, the TLP2309(TPL,E(T is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this optocoupler is the ideal choice for advanced electronic designs.

TLP2309(TPL,E(T IC-2309 OPTOISO 3.75KV TRANS 6-SO 5 LEAD Technical Specifications

• Features: Photocouplers GaAs Infrared LED & Photo IC
• Manufacturer: TOSHIBA
• MountingType: SMT
• Package  /Case: MFSOP6
• Number  ofChannel: 1
• Current  TransferRatio: %15
• OutputVoltage:
• OutputCurrent: 8mA
• IsolationVoltage: 3750Vrms
• ForwardVoltage: 1.7V
• OperatingTemperature: -40°C~+110°C
• Rohs: ROHS
• Packaging: TAPE&REEL
