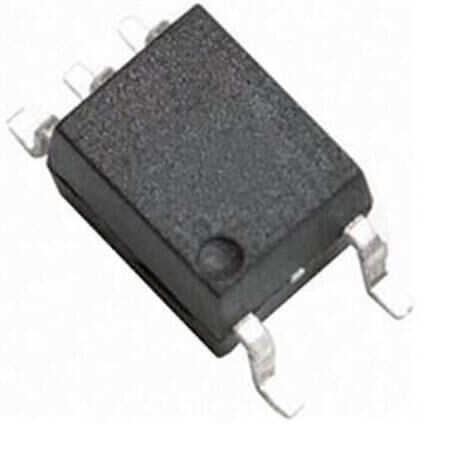

TLP109(TPL,E IC-109 OPTOISOLATOR 3.75KV TRANS. 5LEAD SOIC6

TLP109(TPL,E IC-109 OPTOISOLATOR 3.75KV TRANS. 5LEAD SOIC6 Description

The TLP109(TPL,E IC-109 OPTOISOLATOR 3.75KV TRANS. 5LEAD SOIC6 The TLP109(TPL,E by TOSHIBA is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 20V and an output current of 8mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 3750Vrms and a forward voltage of 1.64V, making it suitable for demanding applications. Operating in a temperature range of -55°C~+125°C, the TLP109(TPL,E is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this optocoupler is the ideal choice for advanced electronic designs.

TLP109(TPL,E IC-109 OPTOISOLATOR 3.75KV TRANS. 5LEAD SOIC6 Technical Specifications

• Features: Photocoupler GaAs Ired & Photo-Transistor
• Manufacturer: TOSHIBA
• MountingType: SMT
• Package  /Case: SO6-5L
• Number  ofChannel: 1
• Current  TransferRatio: %20
• OutputVoltage: 20V
• OutputCurrent: 8mA
• IsolationVoltage: 3750Vrms
• ForwardVoltage: 1.64V
• OperatingTemperature: -55°C~+125°C
• Rohs: ROHS
• Packaging: TAPE&REEL
