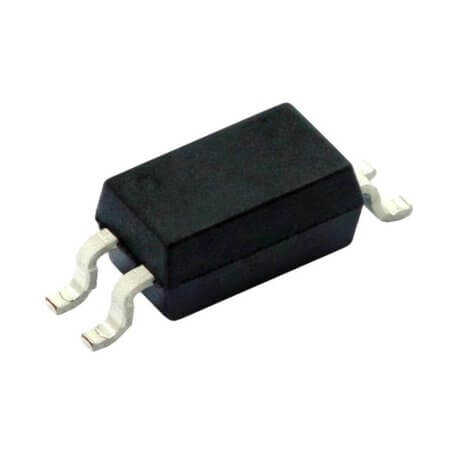

TCMT1109 DC-IN 1-CH TRANSISTOR DC-OUT SSOP4

TCMT1109 DC-IN 1-CH TRANSISTOR DC-OUT SSOP4 Description

The TCMT1109 DC-IN 1-CH TRANSISTOR DC-OUT SSOP4 The TCMT1109 by VISHAY is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 70V and an output current of 50mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 3750Vrms and a forward voltage of 1.35V, making it suitable for demanding applications. Operating in a temperature range of -40°C~+100°C, the TCMT1109 is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this optocoupler is the ideal choice for advanced electronic designs.

TCMT1109 DC-IN 1-CH TRANSISTOR DC-OUT SSOP4 Technical Specifications

• Features: Optocoupler, Phototransistor Output, Single Channel, Half Pitch Mini-Flat Package
• Manufacturer: VISHAY
• MountingType: SMT
• Package   /Case: SSOP4
• Number   ofChannel: 1
• Current   TransferRatio: %200 - %400
• OutputVoltage: 70V
• OutputCurrent: 50mA
• IsolationVoltage: 3750Vrms
• ForwardVoltage: 1.35V
• OperatingTemperature: -40°C~+100°C
• Rohs: ROHS
• Packaging: TAPE&REEL
