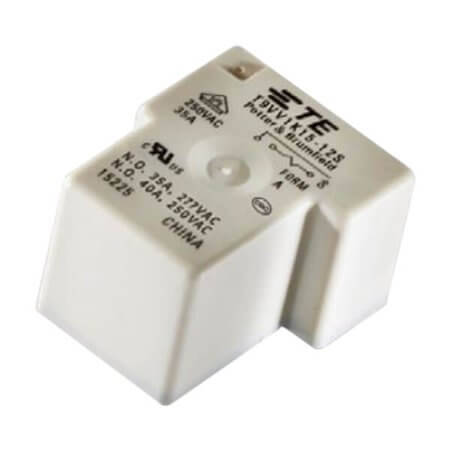

T9VV1K15-12S RELAY GEN PURPOSE SPST 40A 12V

T9VV1K15-12S RELAY GEN PURPOSE SPST 40A 12V Description

T9VV1K15-12S RELAY GEN PURPOSE SPST 40A 12V T9VV1K15-12S is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC and coil resistance of 64 Ohms. Features a coil power of 2.25W and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 32.51mm, width 27.43mm, and height 20.40mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

T9VV1K15-12S RELAY GEN PURPOSE SPST 40A 12V Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Power
• Series: T9V
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 40A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 188mA
• ContactVoltage: 277VAC
• CoilResistance: 64 Ohms
• CoilPower: 2.25W
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 32.51mm
• Width: 27.43mm
• Height: 20.40mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
