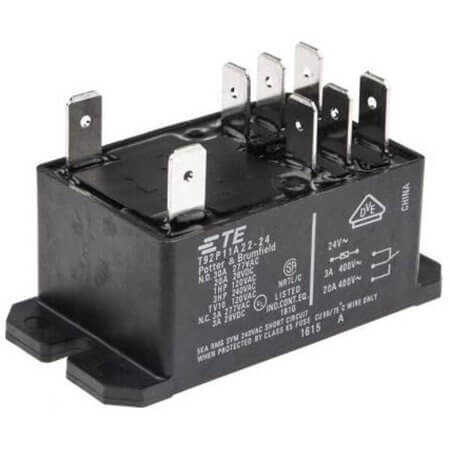

T92P11A22-24 RELAY GEN PURPOSE DPDT 30A 24V

T92P11A22-24 RELAY GEN PURPOSE DPDT 30A 24V Description

T92P11A22-24 RELAY GEN PURPOSE DPDT 30A 24V T92P11A22-24 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC and coil resistance of 36.60 Ohms. Features a coil power of 1.70W and operates within a temperature range of -55°C~+65°C.Compact design with dimensions: length 68.58mm, width 34.54mm, and height 26.42mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

T92P11A22-24 RELAY GEN PURPOSE DPDT 30A 24V Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay General
• Series: T92
• MountingType: Chassis Mount
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 30A
• ContactCurrent(Max):
• CoilVoltage: 24VAC
• CoilCurrent: 167mA
• ContactVoltage: 277VAC
• CoilResistance: 36.60 Ohms
• CoilPower: 1.70W
• OperatingTemperature: -55°C~+65°C
• NumberofPins: 8 Pin
• Length: 68.58mm
• Width: 34.54mm
• Height: 26.42mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
