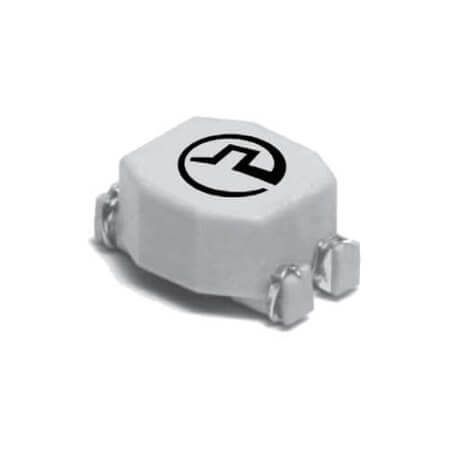

T8114NL CHOKE COMMON MODE 4.7MH 700MR SMD

T8114NL CHOKE COMMON MODE 4.7MH 700MR SMD Description

T8114NL CHOKE COMMON MODE 4.7MH 700MR SMD The product T8114NL (CHOKE COMMON MODE 4.7MH 700MR SMD) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by PULSE, it features an inductance of 500nH and a DC resistance of 800m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 8.90mm x 6.30mm x 3.90mm and operates within a temperature range of -40°C ~ +85°C. Packaged in TUBE format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

T8114NL CHOKE COMMON MODE 4.7MH 700MR SMD Technical Specifications

• Manufacturer: PULSE
• Series: T81
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Shielded
• FilterType: Signal Line Filter
• NumberofLines: 2
• Inductance: 500nH
• Impedance: None
• Current: 400mA
• Tolerance: +50%/-30%
• DCResistance(DCR): 800m Ohms
• Applications: General Purpose
• Diameter:
• Length: 8.90mm
• Width: 6.30mm
• Height: 3.90mm
• OperationTemperature: -40°C ~ +85°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
