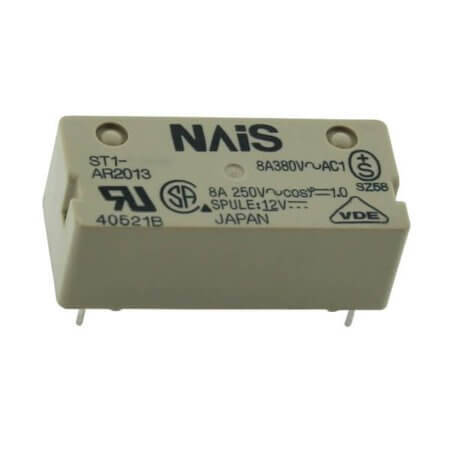

ST1-DC12V RELAY 8A 12VDC 1a1b NAIS

ST1-DC12V RELAY 8A 12VDC 1a1b NAIS Description

ST1-DC12V RELAY 8A 12VDC 1a1b NAIS ST1-DC12V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 380VAC/250VDC - Max and coil resistance of 600 Ohms. Features a coil power of 240mW and operates within a temperature range of -40°C~+60°C.Compact design with dimensions: length 31.00mm, width 14.00mm, and height 11.00mm.Manufactured by PANASONIC (NAIS) and compliant with NON ROHS standards. Packaged as TRAY for convenience.

ST1-DC12V RELAY 8A 12VDC 1a1b NAIS Technical Specifications

• Manufacturer: PANASONIC (NAIS)
• RelayType: Relay Power Polarized
• Series: ST
• MountingType: THT
• ContactForm: DPST-NO/NC (1 Form A/1 Form B)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 20mA
• ContactVoltage: 380VAC/250VDC - Max
• CoilResistance: 600 Ohms
• CoilPower: 240mW
• OperatingTemperature: -40°C~+60°C
• NumberofPins: 6 Pin
• Length: 31.00mm
• Width: 14.00mm
• Height: 11.00mm
• Rohs: NON ROHS
• Packaging: TRAY

---

You can click for product datasheet.
