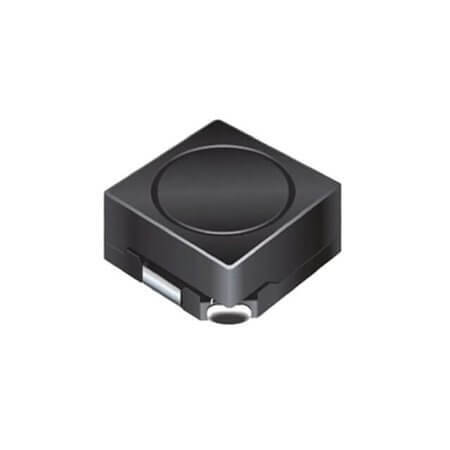

SRR0603-220ML INDUCTOR FIXED 22UH 700MA 270 MOHM

SRR0603-220ML INDUCTOR FIXED 22UH 700MA 270 MOHM Description

SRR0603-220ML INDUCTOR FIXED 22UH 700MA 270 MOHM The SRR0603-220ML is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR FIXED 22UH 700MA 270 MOHM, this component ensures reliable and efficient power management. Manufactured by BOURNS, it features compact dimensions of 6.50mm x 6.50mm x 3.10mm, making it ideal for space-constrained designs. Its ability to operate within -40°C ~ +125°C demonstrates its durability and versatility. Compliant with ROHS standards, the SRR0603-220ML reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

SRR0603-220ML INDUCTOR FIXED 22UH 700MA 270 MOHM Technical Specifications

• Manufacturer: BOURNS
• Series: SRR
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Shielded
• Inductance: 22uH
• CurrentRating: 700mA
• Current-Saturation(Isat):
• Tolerance: ±20%
• DCResistance(DCR): 270m Ohms
• Applications: General Purpose
• Diameter:
• Length: 6.50mm
• Width: 6.50mm
• Height: 3.10mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---
