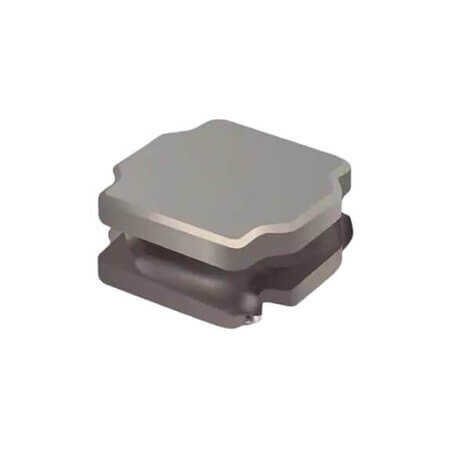

SRN8040TA-220M INDUCTOR FIXED 22UH 2.9A 73 MOHM

SRN8040TA-220M INDUCTOR FIXED 22UH 2.9A 73 MOHM Description

SRN8040TA-220M INDUCTOR FIXED 22UH 2.9A 73 MOHM The SRN8040TA-220M is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR FIXED 22UH 2.9A 73 MOHM, this component ensures reliable and efficient power management. Manufactured by BOURNS, it features compact dimensions of 8.00mm x 8.00mm x 4.20mm, making it ideal for space-constrained designs. Its ability to operate within -55°C ~ +125°C demonstrates its durability and versatility. Compliant with ROHS standards, the SRN8040TA-220M reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

SRN8040TA-220M INDUCTOR FIXED 22UH 2.9A 73 MOHM Technical Specifications

• Manufacturer: BOURNS
• Series: SRN
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Semi Shielded
• Inductance: 22uH
• CurrentRating: 2.9A
• Current-Saturation(Isat): 3.1A
• Tolerance: ±20%
• DCResistance(DCR): 73m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 8.00mm
• Width: 8.00mm
• Height: 4.20mm
• OperationTemperature: -55°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
