SQH3015S-4R7M-LF INDUCTOR 4.7±20% 100KHz DC 1.10A

SQH3015S-4R7M-LF INDUCTOR 4.7±20% 100KHz DC 1.10A Description

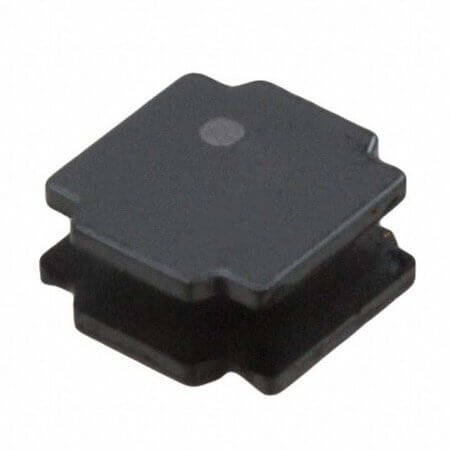

SQH3015S-4R7M-LF INDUCTOR 4.7±20% 100KHz DC 1.10A The SQH3015S-4R7M-LF is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR 4.7±20% 100KHz DC 1.10A, this component ensures reliable and efficient power management. Manufactured by COILMASTER, it features compact dimensions of 3.10mm x 3.10mm x 1.90mm, making it ideal for space-constrained designs. Its ability to operate within -40°C ~ +105°C demonstrates its durability and versatility. Compliant with ROHS standards, the SQH3015S-4R7M-LF reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

SQH3015S-4R7M-LF INDUCTOR 4.7±20% 100KHz DC 1.10A Technical Specifications

• Manufacturer: COILMASTER
• Series: SQH
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Power
• Shielding: Shielded
• Inductance: 4.7uH
• CurrentRating: 1.04A
• Current-Saturation(Isat):
• Tolerance: ±20%
• DCResistance(DCR): 144m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 3.10mm
• Width: 3.10mm
• Height: 1.90mm
• OperationTemperature: -40°C ~ +105°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
