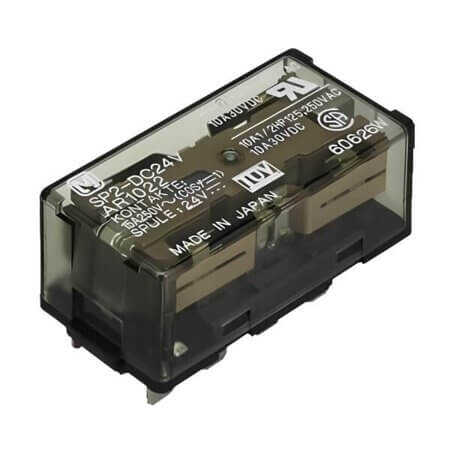

SP2-DC24V RELAY POWER 15A 24VDC 2P PANASONIC

SP2-DC24V RELAY POWER 15A 24VDC 2P PANASONIC Description

SP2-DC24V RELAY POWER 15A 24VDC 2P PANASONIC SP2-DC24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 1.92K Ohms. Features a coil power of 300mW and operates within a temperature range of -50°C~+60°C.Compact design with dimensions: length 50.00mm, width 25.60mm, and height 20.50mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

SP2-DC24V RELAY POWER 15A 24VDC 2P PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Polarized
• Series: SP
• MountingType: Socket
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 15A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 12.50mA
• ContactVoltage: 250VAC
• CoilResistance: 1.92K Ohms
• CoilPower: 300mW
• OperatingTemperature: -50°C~+60°C
• NumberofPins: 8 Pin
• Length: 50.00mm
• Width: 25.60mm
• Height: 20.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
