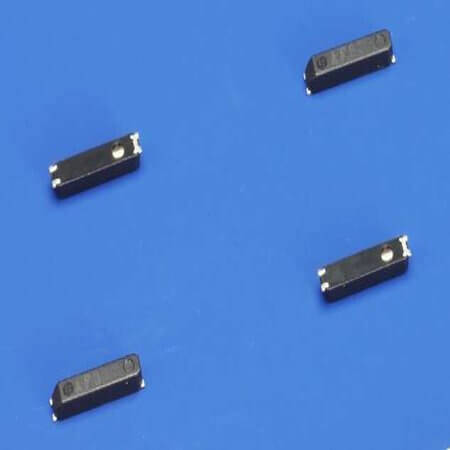

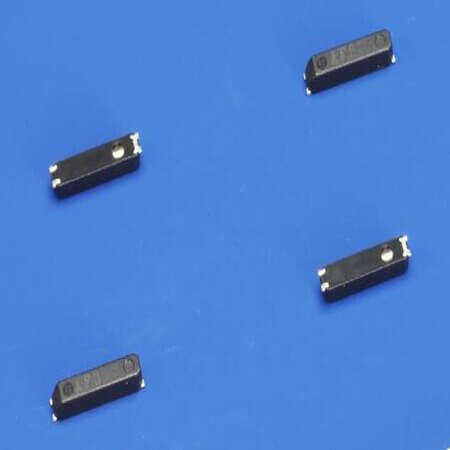

SP-T2A-32.768KHZ-12.5PF CRYSTAL 32.768KHZ 12.5pF SMD TR

SP-T2A-32.768KHZ-12.5PF CRYSTAL 32.768KHZ 12.5pF SMD TR Description

SP-T2A-32.768KHZ-12.5PF CRYSTAL 32.768KHZ 12.5pF SMD TR SP-T2A-32.768KHZ-12.5PF is a high-performance crystal component that operates at a frequency of 32.768KHz with a frequency stability of ±20PPM.Features equivalent series resistance (ESR) of 65K Ohms. Compact dimensions: length 7.00mm, width 1.50mm, and height 1.40mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by SEIKO with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

SP-T2A-32.768KHZ-12.5PF CRYSTAL 32.768KHZ 12.5pF SMD TR Technical Specifications

• Manufacturer: SEIKO
• MountingType: SMT
• Series: SPT
• Package/Case: 4-SMD
• Frequency: 32.768KHz
• Capacitance: 12.5pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±20PPM
• EquivalentSeriesResistance(ESR): 65K Ohms
• Applications:
• Diameter:
• Length: 7.00mm
• Width: 1.50mm
• Height: 1.40mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
