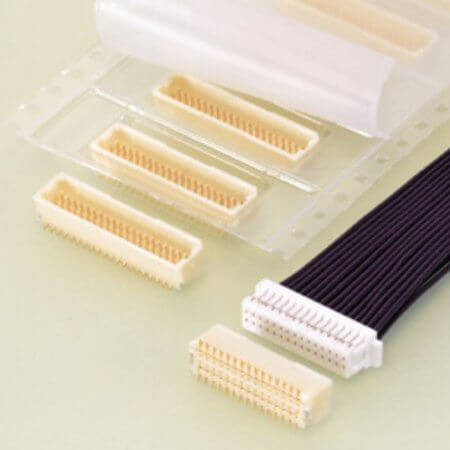

SM20B-SRDS-G-TF(LF)(SN)- CONNECTOR HEADER SHD 20PIN 1MM SIDE JST

SM20B-SRDS-G-TF(LF)(SN)- CONNECTOR HEADER SHD 20PIN 1MM SIDE JST Description

SM20B-SRDS-G-TF(LF)(SN)- CONNECTOR HEADER SHD 20PIN 1MM SIDE JST The SM20B-SRDS-G-TF(LF)(SN)-, manufactured by JST AMERICA, is a reliable PCB connector designed for connector header shd 20pin 1mm side jst. It features 20(2x10) Pins with 2 Rows, ensuring secure and efficient connections in electronic assemblies. The connector offers a pin pitch of 1.00mm, and its contacts are plated with phosphor bronze for enhanced durability and conductivity. The housing comes in a natural color, providing a clean and professional appearance. With a mounting type of smt r/a and an operating temperature range of -25°C~+85°C, it is suitable for various environmental conditions. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the SM20B-SRDS-G-TF(LF)(SN)- is an excellent choice for professionals seeking high-quality PCB connector solutions.

SM20B-SRDS-G-TF(LF)(SN)- CONNECTOR HEADER SHD 20PIN 1MM SIDE JST Technical Specifications

• Manufacturer: JST AMERICA
• Series: SHD
• Gender: Male
• Termination: Solder
• MountingType: SMT R/A
• NumberofPins: 20(2x10) Pins
• NumberofRows: 2 Rows
• Pitch: 1.00mm
• ContactPlating: Phosphor Bronze
• HousingColor: Natural
• OperatingTemperature: -25°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
