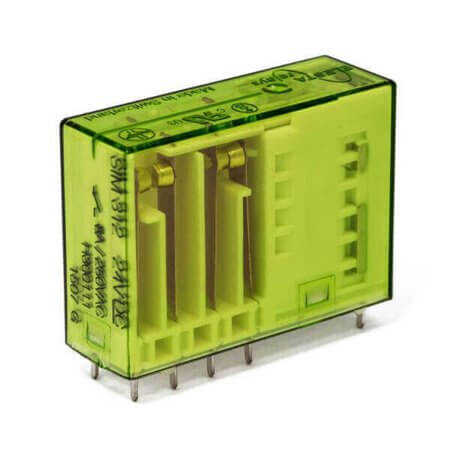

SIM312 12VDC RELAY FORCEGUIDED 8A 12VDC (3 Form A/1 Form B)

SIM312 12VDC RELAY FORCEGUIDED 8A 12VDC (3 Form A/1 Form B) Description

SIM312 12VDC RELAY FORCEGUIDED 8A 12VDC (3 Form A/1 Form B) SIM312 12VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/DC and coil resistance of 140 Ohms. Features a coil power of 1W and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 36.10mm, width 12.50mm, and height 26.20mm.Manufactured by ELESTA and compliant with ROHS standards. Packaged as TRAY for convenience.

SIM312 12VDC RELAY FORCEGUIDED 8A 12VDC (3 Form A/1 Form B) Technical Specifications

• Manufacturer: ELESTA
• RelayType: Relay Forcibly Guided
• Series: SIM4
• MountingType: THT
• ContactForm: 4PST-NO/NC (3 Form A/1 Form B)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 85.70mA
• ContactVoltage: 250VAC/DC
• CoilResistance: 140 Ohms
• CoilPower: 1W
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 10 Pin
• Length: 36.10mm
• Width: 12.50mm
• Height: 26.20mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
