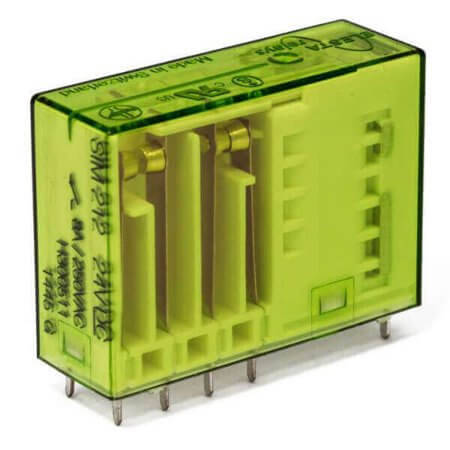

SIM212 24VDC KV2 RELAY FORCEGUIDED 8A 24VDC (2 Form A/1 Form B)

SIM212 24VDC KV2 RELAY FORCEGUIDED 8A 24VDC (2 Form A/1 Form B) Description

SIM212 24VDC KV2 RELAY FORCEGUIDED 8A 24VDC (2 Form A/1 Form B) SIM212 24VDC KV2 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/DC and coil resistance of 800 Ohms. Features a coil power of 500mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 36.10mm, width 12.50mm, and height 26.20mm.Manufactured by ELESTA and compliant with ROHS standards. Packaged as BOX for convenience.

SIM212 24VDC KV2 RELAY FORCEGUIDED 8A 24VDC (2 Form A/1 Form B) Technical Specifications

• Manufacturer: ELESTA
• RelayType: Relay Forcibly Guided
• Series: SIM3
• MountingType: THT
• ContactForm: 3PST-NO/NC (2 Form A/1 Form B)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 30mA
• ContactVoltage: 250VAC/DC
• CoilResistance: 800 Ohms
• CoilPower: 500mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 36.10mm
• Width: 12.50mm
• Height: 26.20mm
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
