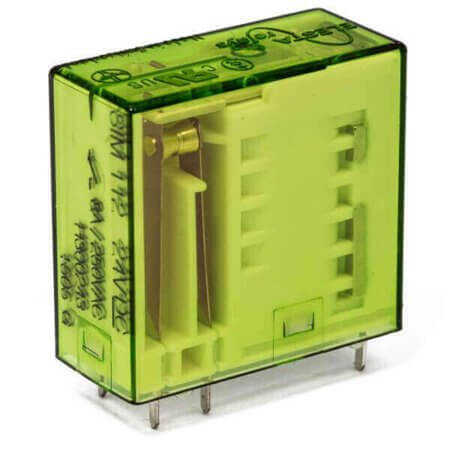

SIM112 12VDC RELAY FORCEGUIDED 8A 12VDC (1 Form A/1 Form B)

SIM112 12VDC RELAY FORCEGUIDED 8A 12VDC (1 Form A/1 Form B) Description

SIM112 12VDC RELAY FORCEGUIDED 8A 12VDC (1 Form A/1 Form B) SIM112 12VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/DC and coil resistance of 270 Ohms. Features a coil power of 500mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 27.40mm, width 12.50mm, and height 26.20mm.Manufactured by ELESTA and compliant with ROHS standards. Packaged as BOX for convenience.

SIM112 12VDC RELAY FORCEGUIDED 8A 12VDC (1 Form A/1 Form B) Technical Specifications

• Manufacturer: ELESTA
• RelayType: Relay Forcibly Guided
• Series: SIM2
• MountingType: THT
• ContactForm: DPST-NO/NC (1 Form A/1 Form B)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 44.40mA
• ContactVoltage: 250VAC/DC
• CoilResistance: 270 Ohms
• CoilPower: 500mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 6 Pin
• Length: 27.40mm
• Width: 12.50mm
• Height: 26.20mm
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
