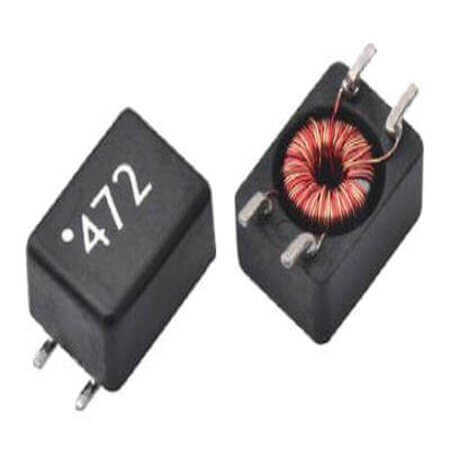

SHT0905-222 CHOKE COMMON MODE 2.2mH 500mA 400m Ohms SMT

SHT0905-222 CHOKE COMMON MODE 2.2mH 500mA 400m Ohms SMT Description

SHT0905-222 CHOKE COMMON MODE 2.2mH 500mA 400m Ohms SMT The product SHT0905-222 (CHOKE COMMON MODE 2.2mH 500mA 400m Ohms SMT) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by CORE MASTER, it features an inductance of 2.2mH and a DC resistance of 400m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 9.00mm x 5.50mm x 5.20mm and operates within a temperature range of N/A. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

SHT0905-222 CHOKE COMMON MODE 2.2mH 500mA 400m Ohms SMT Technical Specifications

• Manufacturer: CORE MASTER
• Series: SHT
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Shielded
• FilterType: Signal Line Filter
• NumberofLines: 2
• Inductance: 2.2mH
• Impedance: None
• Current: 500mA
• Tolerance: ±50%
• DCResistance(DCR): 400m Ohms
• Applications: General Purpose
• Diameter:
• Length: 9.00mm
• Width: 5.50mm
• Height: 5.20mm
• OperationTemperature:
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
