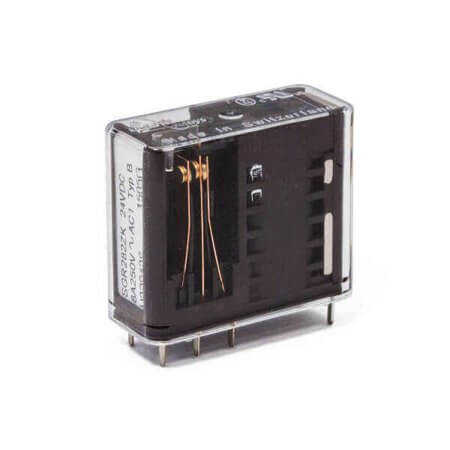

SGR282ZK 24VDC RELAY FORCEGUIDED 8A 24VDC (2 Form C)

SGR282ZK 24VDC RELAY FORCEGUIDED 8A 24VDC (2 Form C) Description

SGR282ZK 24VDC RELAY FORCEGUIDED 8A 24VDC (2 Form C) SGR282ZK 24VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/DC and coil resistance of 822 Ohms. Features a coil power of 700mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 30.20mm, width 12.70mm, and height 25.60mm.Manufactured by ELESTA and compliant with ROHS standards. Packaged as BOX for convenience.

SGR282ZK 24VDC RELAY FORCEGUIDED 8A 24VDC (2 Form C) Technical Specifications

• Manufacturer: ELESTA
• RelayType: Relay Forcibly Guided
• Series: SGR282ZK
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 29.10mA
• ContactVoltage: 250VAC/DC
• CoilResistance: 822 Ohms
• CoilPower: 700mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 30.20mm
• Width: 12.70mm
• Height: 25.60mm
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
