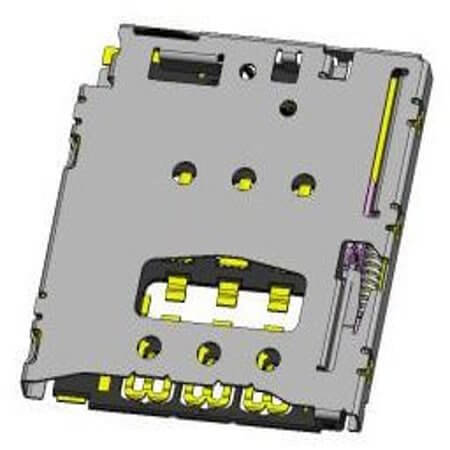

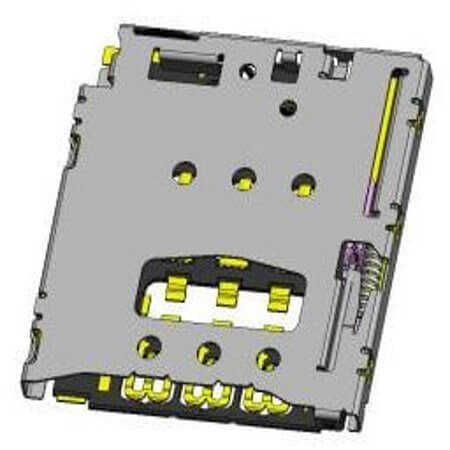

SF56S006V4BR2000 CONNECTOR MICRO SIM CARD PUSH-PUSH

SF56S006V4BR2000 CONNECTOR MICRO SIM CARD PUSH-PUSH Description

SF56S006V4BR2000 CONNECTOR MICRO SIM CARD PUSH-PUSH The product SF56S006V4BR2000 (CONNECTOR MICRO SIM CARD PUSH-PUSH) is a high-quality PC board socket designed for reliable connections. It features 8(6+2) Pins pins and a height above the board of 1.25mm. The socket has an ejector side on the Right and an insertion/removal method of Push-Push. With contact plating of Gold Flash and a housing color of N/A, it is built to ensure durability and performance. Operating within a temperature range of -25°C~+85°C, it is suitable for various applications. Packaged in TAPE&REEL format and compliant with ROHS standards, it is an excellent choice for modern electronic systems.

SF56S006V4BR2000 CONNECTOR MICRO SIM CARD PUSH-PUSH Technical Specifications

• Manufacturer: JAE
• Series: SF56
• CardType: Sim Card Connectors
• MountingType: SMT
• NumberofPins: 8(6+2) Pins
• HeightAboveBoard: 1.25mm
• EjectorSide: Right
• Insertion,RemovalMethod: Push-Push
• MountingFeature: Normal,Standart-Top
• ContactPlating: Gold Flash
• HousingColor:
• OperatingTemperature: -25°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
