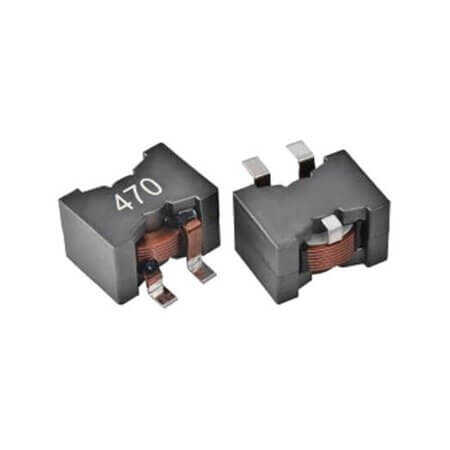

SER2918HT-4R7M INDUCTOR POWER 4.7UH 61.2A 28X28X19.5MM SMD

SER2918HT-4R7M INDUCTOR POWER 4.7UH 61.2A 28X28X19.5MM SMD Description

SER2918HT-4R7M INDUCTOR POWER 4.7UH 61.2A 28X28X19.5MM SMD The SER2918HT-4R7M is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR POWER 4.7UH 61.2A 28X28X19.5MM SMD, this component ensures reliable and efficient power management. Manufactured by CORE MASTER, it features compact dimensions of 27.90mm x 19.30mm x 17.50mm, making it ideal for space-constrained designs. Its ability to operate within a wide operating temperature range demonstrates its durability and versatility. Compliant with ROHS standards, the SER2918HT-4R7M reflects a commitment to eco-friendly practices. Packaged as BOX, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

SER2918HT-4R7M INDUCTOR POWER 4.7UH 61.2A 28X28X19.5MM SMD Technical Specifications

• Manufacturer: CORE MASTER
• Series: SER
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Power
• Shielding: Unshielded
• Inductance: 4.7uH
• CurrentRating: 61.2A
• Current-Saturation(Isat):
• Tolerance: ±20%
• DCResistance(DCR): 2.8m Ohms
• Applications: General Purpose
• Diameter:
• Length: 27.90mm
• Width: 19.30mm
• Height: 17.50mm
• OperationTemperature:
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
